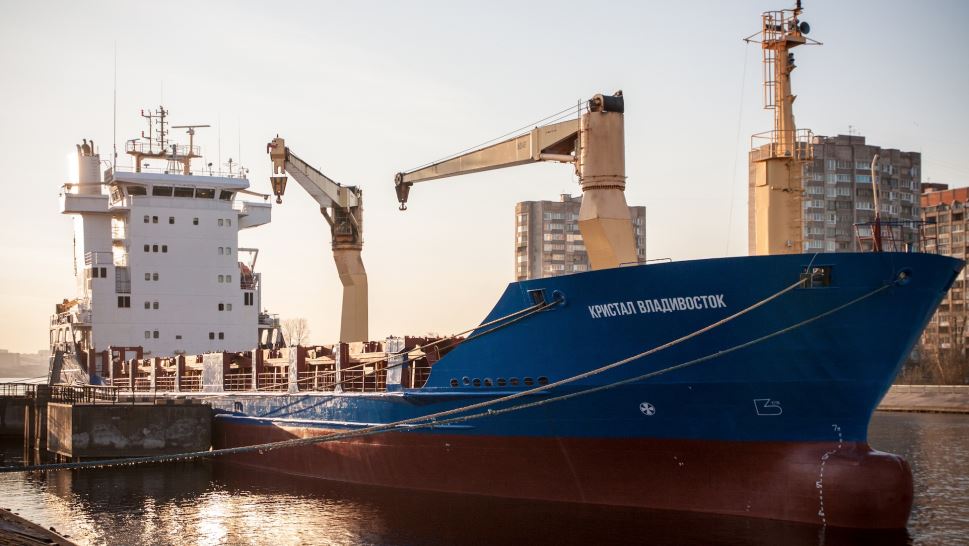

Vessel name Crystal Vladivostok 5,560 DWT / 2 x 40 mt Built 04/2002 / IMO no. 9251509 / Flag Russia |
|
Ship`s Basics: Type Multi Purpose Vessel Singledecker Builder Qingshan Shipyard, Wuhan, China Classification RMRS reg. № 980959 equipped for carriage of dry and reefer containers and dangerous goods |
Dimensions & Main Data
Tonnage GT/NT 4,454 / 1,986
Deadweight (summer) 5,560 mt
Length o.a. 100.60 m
Length p.p. 95.90 m
Beam 18.80 m
Max. draft (summer) 6.65 m
Consumption at sea
Max. speed 14.5 knots (14,0 Mt IFO 380 per day wog)
Service speed 12.5 knots (10,5 Mt IFO 380 per day wog)
Eco. speed 9.0 knots (9,0 Mt IFO 380 per day wog)
Consumption in port 2.0 mt fuel per day (with crane operations)
1.6 mt fuel per day (without crane operations)
Fuel on ME RMG 380 / RME 180 / MGO DMA / MDO DMB MGO
Fuel on AE DMA
Tank capacities RME 180 abt. 540 cbm
MGO DMA / MDO DMB abt. 88 cbm Ballast abt. 2,086 cbm Freshwater abt. 65 cbm
Propulsion
Main Engine MAK 9M 32C, 4,320 kW 600 rpm
Aux.-Engines Volvo Penta, 2 x 422 kW
Propeller Controllable pitch propeller
Hold and Hatch 3 Holds / 3 Hatches Folding type 7,177 cbm (253,452 cbft)
Hold №1 6,48 x 7,80 x 8,90 m (449,84 CbM)
Hold №2 25,20 x 15,67 x 8,90 m (3514,46 CbM)
Hold №3 25,2 x 15,67 x 8,90 m (3514,46 CbM)
Hold ventilation: hold 1 - 3: 6 airchanges per hour.
Hatch №1 6,48 x 7,80 m ( 50,54 SqM)
Hatch №2 25,20 x 15,67 m (394,88 SqM)
Hatch №3 25,20 x 15,67 m (394,88 SqM)
Floor space under deck 874 sqm (17,889 sqft)
Floor space on deck 840 sqm (20,160 sqft)
Deck strengths per sqm 10.00 mt on tanktop 1.75 mt on deck
Cargo Gear
Type 2 x 40 mt NMF
Combinable 80 mt
Situated Portside
Container Capacity
Capacity 20´ or 40´ + 20´
Hold 141 / 64 / 13
Deck 360 / 169 / 19
Total 501 / 233 / 32
TEU at 14 mt 275
Reeferplugs total 126 (72 on deck / 54 in holds no 2-3)
Stackload 20‘ / 40‘
Hold 72 mt / 105
Twd mt 36 mt / 50 mt
Deck 45 mt / 65 mt
Special Equipment / Features
IMO classes Fitted for carriage of dangerous goods of all IMO classes
Freshwater generator: 10 mt/day
Other Bow thruster; Shaft generator, active rudder
